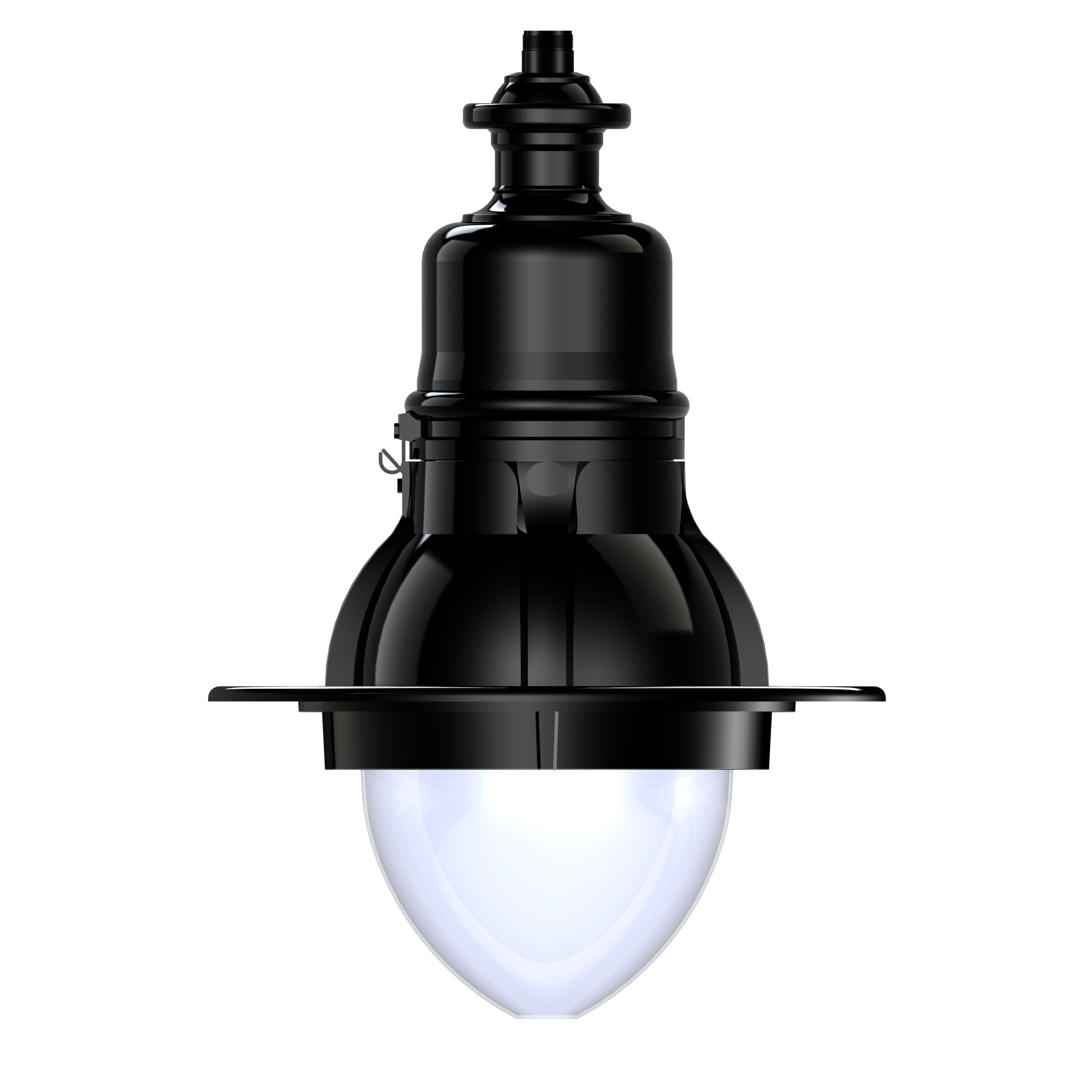

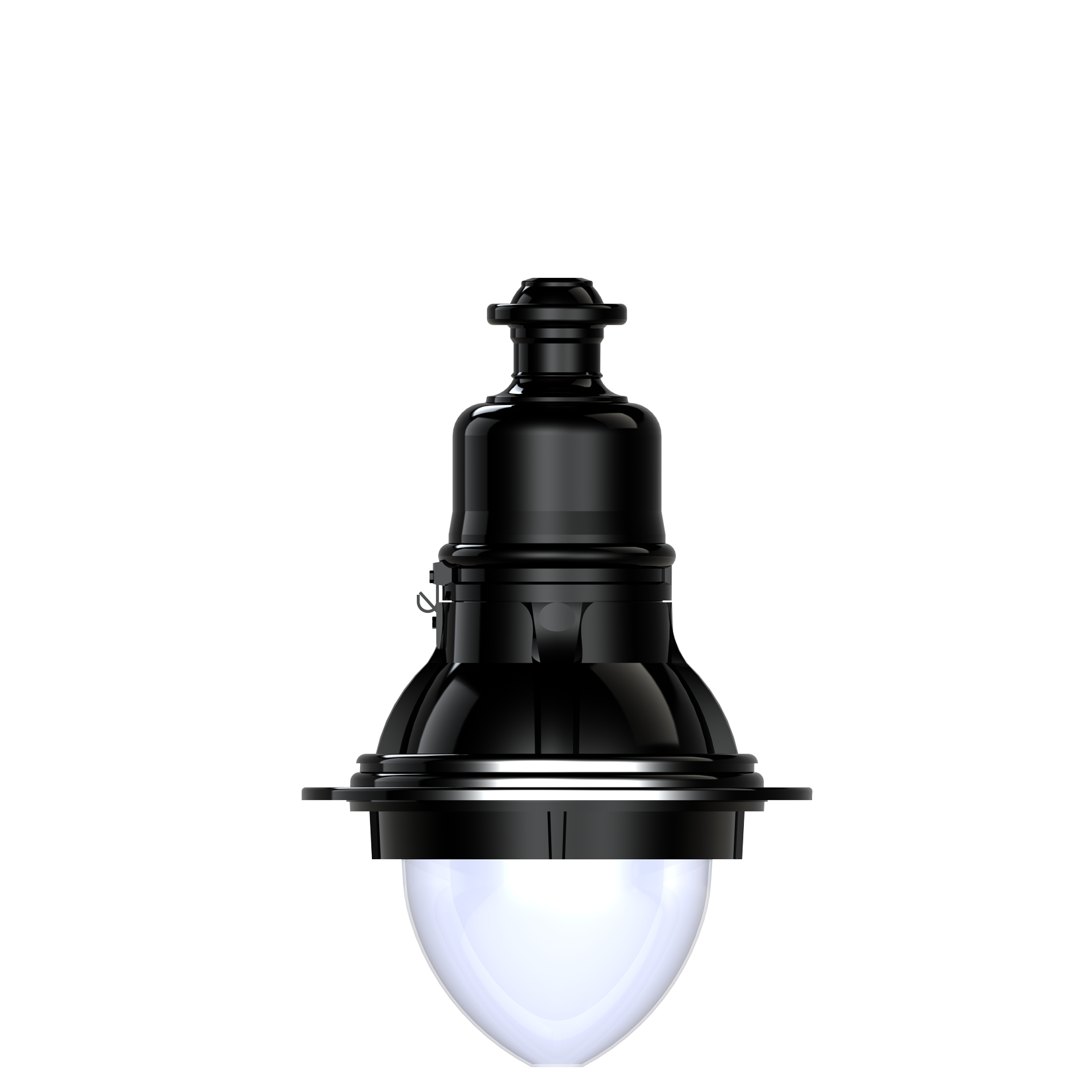

NEW PRODUCT GC6600 Series Contemporary Fixture

$0.00

REFRACTIVE LENS OPTION

Width: 16 1/2”-22“ Height: 34“

GC6600 SERIES SPEC SHEET

REFRACTIVE LENS OPTION

Width: 16 1/2”-22“ Height: 34“

GC6600 SERIES SPEC SHEET

FEATURES

  • Stylish and efficient pendant mounted contemporary luminaire

  • Lightweight cast aluminum housing with stainless steel set screws for installation

  • Threaded pipe mounting for a secure attachment

  • Durable Powder Coat Finish

  • 0-10V Dimming Capability

  • 120V-277V Auto Sensing Drivers

  • ETL Listed

LED LIGHT SOURCE OPTIONS

  • 6 Power Levels

  • 4 Color Temperatures

  • 4 Light Distributions
    (HID Version Available-Consult Factory)

MATERIALS

  • Fitter Housing - Cast Aluminum (A356)

  • Shade - Spun Aluminum

  • Hardware - Stainless Steel

  • Lens (Optional) - Acrylic or Glass

LENS OPTION

  • NL - No Lens (Highest LPW)

  • TG - Clear Flat Tempered Glass

  • AC-CL - Clear Acrylic Teardrop

  • AC-CL - Refractive Clear Acrylic Teardrop

ACCESSORIES

  • Photocell

  • House Side Shield

  • Surge Protection 10kV/10kA

LED MODULE

  • 12 and 24 High efficacy multi-die packages

  • 2x6 and 3×8 LED Configurations

  • 70CRI - 2700, 3000, 4000, 5000 CCT

LED OPTICS

  • 2x6 and 3×8 Multi Lens

  • PMMA (Acrylic)

  • IP66 System
